The DIY Homeowner Method to Remove and Clean a Furnace Blower Wheel

Furnace Blower Wheel Cleaning: The Safe Way to Restore Airflow

A dirty blower wheel can cut airflow, make rooms heat unevenly, and force the furnace motor to work harder. For light, dry dust, you can often clean it safely by shutting off power at the breaker, confirming the unit has no voltage, then using a soft nylon brush and a HEPA vacuum to clean the accessible blades evenly.

Do not spray water, harsh cleaners, or compressed air into the furnace cabinet. If the wheel has greasy buildup, rust, bent fins, wobble, or loud grinding, stop and have a qualified HVAC technician remove and clean the assembly.

Even a thin layer of dust changes the shape of the blower blades. Research suggests as little as 1/16 inch of buildup can reduce airflow by up to 20 percent. That reduced airflow can raise energy use, strain the motor, and contribute to overheating issues.

This guide explains how to inspect, remove, and clean a furnace blower wheel while protecting the wiring, motor, wheel balance, and your home's heating system.

Why Clean Airflow and Blower Efficiency Matter

The blower assembly—often called a squirrel cage fan because of its circular, wheel-like shape—is the mechanical heart of your HVAC air delivery system. Its job is to draw return air through the filter and drive a calculated volume of air, measured in Cubic Feet per Minute (CFM), across the heat exchanger or cooling coil and into your supply ducts.

When dirt settles onto the concave curve of the fan blades, it alters their aerodynamic profile. The fan no longer scoops air efficiently. Instead, the motor encounters elevated static pressure and must run longer or pull more electrical current to move the same volume of air. Heating and cooling energy consumption can increase by as much as 15% to 20% simply due to heavily soiled blower components.

Operating with restricted airflow creates serious mechanical risks. In heating mode, insufficient airflow over the primary and secondary heat exchangers traps heat inside the furnace cabinet. Internal temperatures can skyrocket, causing the high-limit safety switch to trip repeatedly or causing stress that cracks the heat exchanger. During summer cooling, poor blower airflow can cause the evaporator coil to freeze into a solid block of ice, risking liquid slugging back to the air conditioner compressor.

Keeping air filters fresh is your primary line of defense. For guidance on filter care, review The Ultimate Guide to Filter Replacement for Furnace Longevity.

Performance Factor	Clean Blower Wheel	Dirty Blower Wheel (1/16" Build-Up)
Airflow Volume (CFM)	100% rated capacity	Up to 20% reduction
System Energy Consumption	Baseline optimal	Increases by 15% to 20%
Motor Operating Temperature	Normal / Cool	High (Increased amp draw & thermal stress)
Heat Exchanger Risk	Low	High (Overheating & limit switch cycling)
Operational Noise	Quiet, steady air rush	Whirring, humming, or dynamic vibration

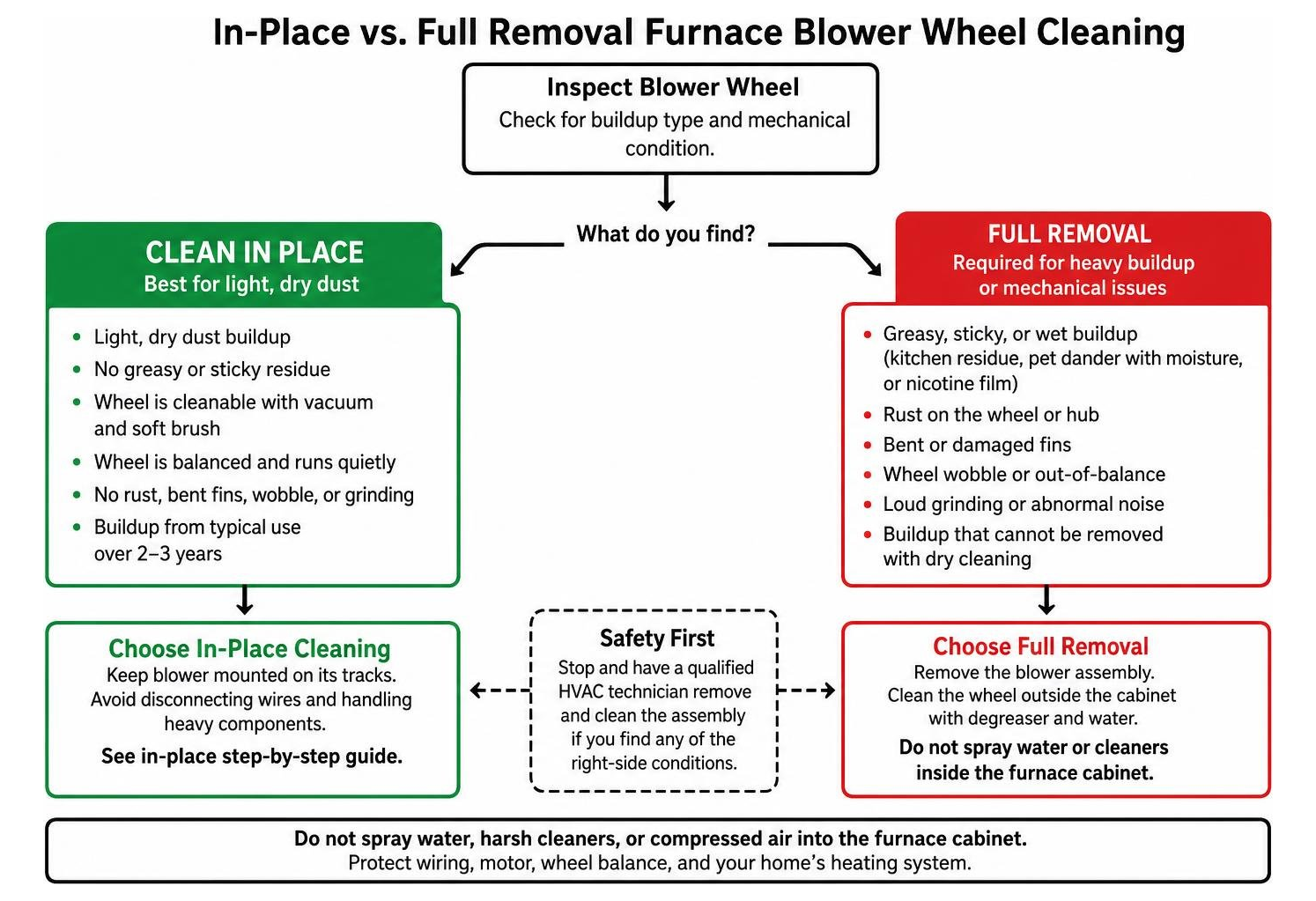

In-Place vs. Full Removal Furnace Blower Wheel Cleaning

Homeowners generally have two paths when servicing a dirty fan: cleaning the wheel inside the cabinet (in-situ) or fully removing the assembly.

In-place cleaning is suited for light, dry dust that has accumulated over two to three years. By leaving the blower mounted on its sliding tracks, you avoid disconnecting wire harnesses, handling heavy motors, or disturbing capacitor connections. For a closer look at this method, read this step-by-step guide to in-place blower care.

Full removal is required when the buildup consists of sticky, greasy kitchen residue, pet dander bonded with moisture, or nicotine film. These contaminants cannot be brushed away dry and demand an exterior wash with degreasers and water away from electrical components.

Signs Your HVAC System Needs Blower Servicing

Recognizing when your blower assembly is struggling prevents sudden mid-winter breakdowns. Common warning signs include:

• Weak Vent Airflow: Rooms located furthest from the furnace feel cold or stuffy because the fan cannot generate enough static pressure.
• Unusual Humming or Rattling: Heavy dust accumulation rarely settles evenly across 30 to 50 individual blades. This creates dynamic imbalance, causing the fan to shake, rattle the cabinet, or emit a low drone.
• Short-Cycling: The furnace fires up, runs for a brief period, shuts down on a high-temperature limit trip, and restarts once cooled.
• Excess Household Dust: Grime blowing past aging filter tracks settles onto the wheel and is pushed back into your living spaces.

If your system displays these symptoms alongside mechanical wear, evaluating repair feasibility is key. Check our guide on Furnace Repair vs Replacement: How to Make the Right Call to determine the best step forward.

Complete Step-by-Step Furnace Blower Wheel Cleaning and Removal Guide

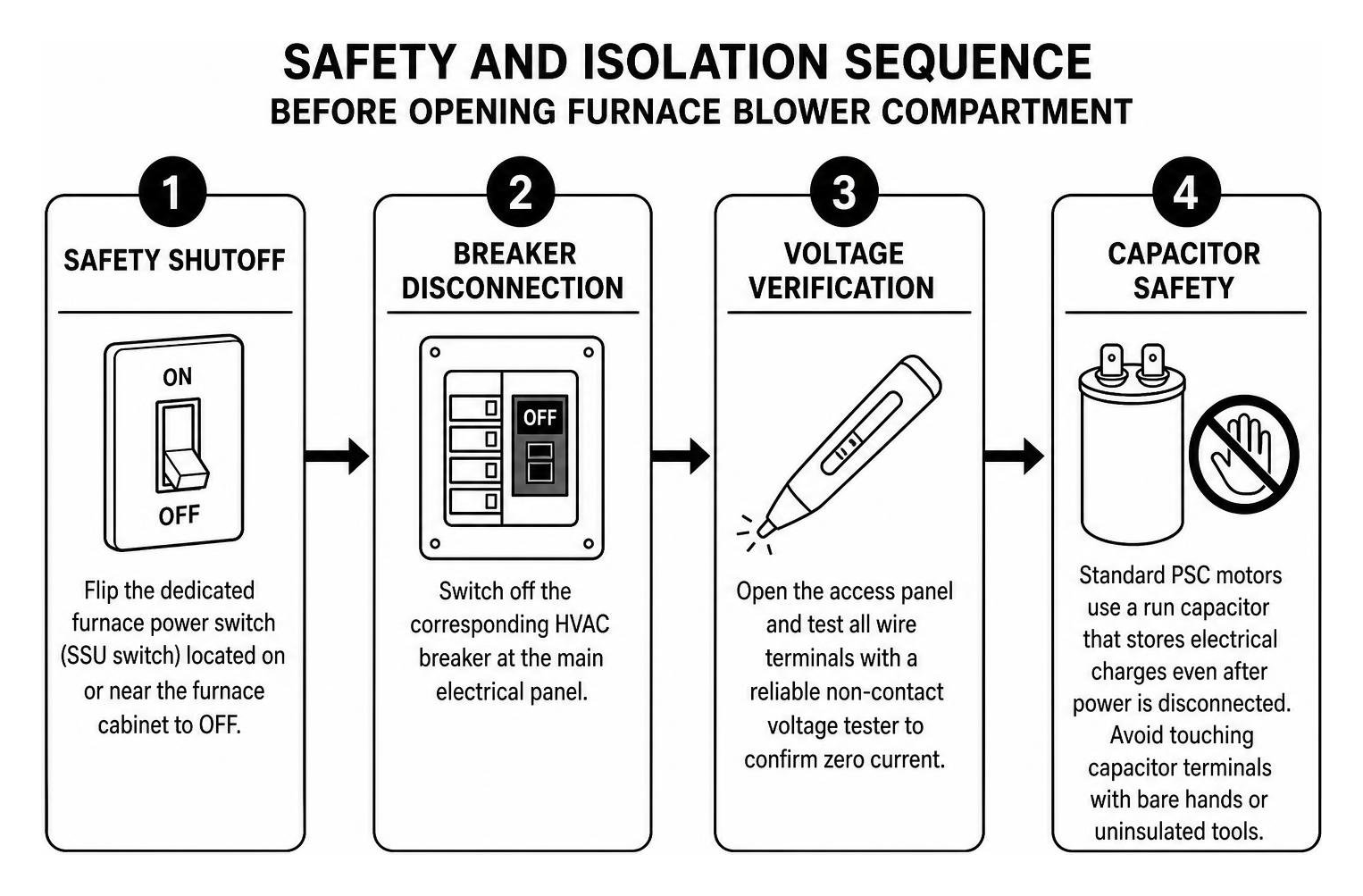

Attempting DIY furnace maintenance requires strict adherence to electrical and mechanical safety protocols.

1. Safety Shutoff: Flip the dedicated furnace power switch (SSU switch) located on or near the furnace cabinet to OFF.
2. Breaker Disconnection: Switch off the corresponding HVAC breaker at the main electrical panel.
3. Voltage Verification: Open the access panel and test all wire terminals with a reliable non-contact voltage tester to confirm zero current.
4. Capacitor Safety: Standard PSC motors use a run capacitor that stores electrical charges even after power is disconnected. Avoid touching capacitor terminals with bare hands or uninsulated tools.

Preparation and Tools for Furnace Blower Wheel Cleaning

Gather the necessary tools before opening the furnace cabinet:

• 1/4-inch and 5/16-inch hex nut drivers
• Adjustable wrench and Allen key set
• Stiff nylon detail brushes or narrow bottle brushes
• HEPA-filtered vacuum with a narrow crevice attachment
• Penetrating oil (for stubborn shaft hubs)
• Work gloves, safety glasses, and an N95 dust mask
• Painter's tape and a marker to label wires

For additional maintenance background, see these expert recommendations on DIY blower maintenance.

Extracting and Washing the Squirrel Cage Assembly

To remove and clean the assembly:

1. Document and Disconnect Wiring: Take high-resolution photos of the control board connections. Carefully unplug the wiring harness running to the blower motor.
2. Remove Housing Fasteners: Unbolt the two main retention screws securing the blower housing to the internal cabinet slide rails.
3. Slide Out the Housing: Support the heavy motor and fan assembly with both hands and slide it out onto a flat, protected work surface.
4. Isolate the Motor: Locate the set screw on the fan wheel hub where it clamps onto the motor shaft. Loosen the screw with an Allen wrench. If rust is present, apply penetrating oil. Gently slide the motor out of the hub without hammering the shaft.
5. Wash the Wheel: Take the bare metal squirrel cage outdoors. Spray the blades with a mild household degreaser or warm soapy water. Use a nylon brush to clean each blade cavity individually.
6. Protect Balancing Clips: Look for small metal clips attached to individual fins. These are factory balancing weights. Never move, bend, or detach them.
7. Dry and Reassemble: Let the wheel air-dry completely for 1 to 2 hours. Slide the wheel back onto the motor shaft, ensuring the set screw tightens securely onto the flat side of the shaft. Reinstall the assembly onto its cabinet tracks and reconnect all wiring according to your reference photos.

To ensure your system remains in peak condition year-round, schedule routine Furnace Maintenance with certified technicians.

Troubleshooting and Knowing When to Call a Professional

DIY cleaning can occasionally run into mechanical hurdles:

• Seized Motor Shafts: If the fan hub is rusted firmly to the motor shaft, forceful pulling or hammering will mushroom the shaft end and ruin the motor bearings.
• Persistent Shaking: If the blower vibrates violently after cleaning, the wheel may have lost a balancing weight, suffered bent fins, or settled out of alignment.
• Grinding Noises: Squealing or metallic grinding indicates worn internal motor bearings rather than dust buildup.

When encountering electrical complexities, seized parts, or persistent vibrations, rely on professional Furnace Repair to restore proper operation safely.

Testing the Furnace Blower After Reassembly

Reinstalling the assembly is only half the job. Before you close the cabinet for good, run a short series of checks to confirm the blower wheel is seated correctly, the wiring is right, and the furnace is moving air the way it should.

1. Spin the Wheel by Hand: With power still off, rotate the blower wheel slowly. It should turn freely and evenly without rubbing the housing, scraping the cutoff plate, or wobbling from side to side.
2. Confirm the Set Screw: Check that the hub set screw is tight against the flat of the motor shaft and that the wheel sits centered in the housing, not pushed against one side.
3. Compare the Wiring to Your Photos: Match every connector and speed tap to the pictures you took during disassembly. A wire on the wrong speed tap can leave the blower motor running too slow for heating or too fast and noisy for cooling.
4. Reinstall Panels Before Restoring Power: Most furnaces have a door safety switch that keeps the system from running with the blower compartment open. Put the panels back, then turn the breaker and service switch on.
5. Run a Full Heating Cycle: Raise the thermostat a few degrees and stay with the furnace for one complete cycle. Listen for a steady rush of air with no ticking, scraping, or rhythmic thumping.
6. Check the Vents: Walk through the house and feel the supply registers, especially in rooms farthest from the furnace. Airflow should feel noticeably stronger than it did before the furnace blower wheel cleaning.

If the furnace starts and then shuts off quickly, or the fan does not come on at all, turn the power back off and recheck your connections. Persistent problems usually point to a wiring mix-up, a weak capacitor, or a blower motor that was already failing before the cleaning.

Common Mistakes to Avoid During Furnace Blower Wheel Cleaning

Most DIY problems with this job come from a few avoidable errors. Keep these in mind before you pick up a nut driver:

• Skipping the Voltage Test: Turning off the thermostat does not cut power to the furnace. Always shut off the service switch and breaker, then verify with a tester.
• Getting the Motor Wet: The blower motor windings and bearings are not designed to be washed. Wrap or remove the motor before any wet cleaning, and keep water and degreaser on the wheel only.
• Using Compressed Air Indoors: Blasting a dirty furnace blower with compressed air simply drives dust deeper into the heat exchanger, coil, and ductwork.
• Bending the Fins: The blades are thin sheet metal. Prying, scraping with metal tools, or pressing too hard with a brush can bend them and throw the wheel out of balance.
• Losing Balance Weights: Those small clips on the fins matter. Removing one can cause vibration that wears out bearings within months.
• Reinstalling a Wet Wheel: Moisture left on the blades attracts dust quickly and can promote rust on the hub. Let everything dry completely.
• Ignoring the Filter: A clean blower wheel will get dirty again quickly behind a poorly fitting or overdue filter. Install a fresh filter as the final step.

How Often Chicago-Area Homes Need Blower Wheel Cleaning

In Chicago's western and southwest suburbs, the furnace blower runs for long stretches from October through April, and many of the same systems push air across the AC coil all summer. That near-year-round duty cycle means dust has more opportunity to build up on the blower wheel than it would in a milder climate.

A visual check of the blower wheel during every annual tune-up is a smart baseline. Plan on a closer look sooner if any of the following apply to your home:

• You run the furnace fan in the "On" position continuously for air circulation.
• You have shedding dogs or cats, or several people living in the home.
• You recently remodeled, sanded drywall, or refinished floors while the system was running.
• Your furnace sits in an unfinished basement or a laundry area with lint in the air.
• Filters have occasionally been skipped or left in place well past their replacement date.

Basements in older suburban homes can also be damp in summer. When humidity combines with dust on the blades, the buildup becomes sticky and harder to brush away, which is when a full removal and wash makes more sense than an in-place cleaning.

For general guidance on keeping heating equipment efficient, the ENERGY STAR furnace guide outlines why proper airflow and regular maintenance matter for both comfort and energy use.

DIY vs. Professional Blower Cleaning: What to Expect

A light dusting with a brush and vacuum is well within reach for many handy homeowners. Full removal is a different job. It involves disconnecting wiring, handling a heavy motor, working around a capacitor, and reassembling everything so the wheel stays balanced.

When a technician handles furnace blower wheel cleaning, the visit usually includes more than the wheel itself. A typical professional service may include:

• Inspecting the blower motor bearings, mounts, and capacitor for wear.
• Checking that the blower wheel hub is not cracked or slipping on the shaft.
• Measuring motor amp draw and comparing it with the nameplate rating.
• Confirming correct fan speed settings for heating and cooling.
• Looking over the heat exchanger, flame sensor, and filter rack while the cabinet is open.

The total cost of professional blower cleaning depends on how dirty the wheel is, whether it must be fully removed, how accessible the furnace is, and whether worn parts need replacement. Asking for this work during a scheduled tune-up is often the most efficient approach, since the cabinet is already open.

If your blower is making new noises, the furnace is overheating, or you simply are not comfortable handling electrical components, the team at New Comfort Heating and Cooling can help. We serve homeowners throughout Chicago's western and southwest suburbs; call (708) 717-9995 to schedule service.

Frequently Asked Questions About Blower Maintenance

How often should a furnace blower wheel be cleaned?

Under standard household conditions, a furnace blower wheel should undergo a visual inspection annually and receive a thorough cleaning every 2 to 3 years. Homes with multiple shedding pets, unpaved surroundings, or continuous fan operation may require more frequent cleanings to maintain airflow.

Can a dirty blower wheel damage the furnace heat exchanger or AC compressor?

Yes. When dirty fins restrict airflow across the heat exchanger, the trapped thermal energy can trip the high-limit switch and eventually crack the metal exchanger cells. In summer, low airflow starves the evaporator coil of heat, leading to coil freeze-ups that can damage the compressor.

How do I tell if a blower wheel should be cleaned or replaced?

If the blades are simply coated in dust, lint, or light grease, cleaning will fully restore performance. However, if the wheel shows bent fins, visible cracks along the hub weld, heavy structural rust, or wobbles when spun by hand, the entire wheel must be replaced. For more diagnostic tips, browse our comprehensive HVAC FAQ.

Should I clean the blower wheel myself or wait for my annual tune-up?

If the dust on the blades is light and dry and you are comfortable shutting off power and verifying it, a careful in-place cleaning is reasonable. If the buildup is sticky, the wheel must come out, or the blower motor is noisy, it is usually better to have the work done during a professional tune-up so the motor, capacitor, and heat exchanger can be inspected at the same time.

Conclusion

Keeping your furnace blower assembly clean protects airflow, lowers energy consumption, and extends the lifespan of critical heating components. Whether you tackle light dust using an in-place brush-and-vacuum method or opt for a full teardown, handling the motor, wiring, and balancing clips with care is essential. When you encounter stuck shafts, sticky grime, or balance issues, partnering with experienced technicians ensures your system runs safely all season long. Contact our team today for dependable residential and commercial Heating Services.
